JVC GY-HM200HW - House of Worship Streaming Camcorder

JVC GY-HM200HW - House of Worship Streaming Camcorder

LYRICS, GRAPHICS, AND SCRIPTURE VERSES WITH LIVE STREAMING

The JVC GY-HM200HW is a unique, innovative and affordable professional quality camera that enables a single-operator to stream and record your church events with professional quality titling. It's designed so that one person—even a volunteer with little or no experience—can stream your services through YouTube or Facebook and simultaneously make professional quality recordings. Its Full Auto Mode handles exposure, color balance and focus, so that your operator needs only to point and shoot. The camera comes with graphic layouts for a variety of religious events. Congregation specific and event related text can easily be changed using a browser equipped device (tablet or smartphone.) Audio from your mixing console can be fed directly into the camera's balanced XLR inputs. For churches with limited equipment and personnel resources, this camera is the affordable solution for producing professional quality coverage.

Main Features:

• Live Streaming to internet with optional Wi-Fi or wired network adapter—no computer required!
• Ideal for single camera, single operator production
• Customizable lower third graphic overlays
• Selectable pre-loaded religious icons
• Compatible with Verizon 4G LTE adapter for off premises streaming
• Integrated Ultra HD 12x Zoom Lens with 24x Dynamic Zoom in HD mode
• Full HD recording to SDHC/SDXC memory (with or without titles)
• Options for large viewfinder, rear lens control
• 2-channel XLR audio inputs with phantom power
• Advanced browser based IP remote control and viewing
• 120 fps Slow Motion Recording
• 4K UHD recording and live output (without titles)

Stream directly to the internet without an external computer

The JVC GY-HM200HW features JVC's latest IP communications engine letting you stream your church events to a decoder at a cable head-end, or directly to the internet through your favorite content delivery network such as Facebook, YouTube, USTREAM, and many more. Just press one button on the camera and you're streaming to the world! Live streaming is possible in HD or lower resolutions, depending on available bandwidth. Remote control and monitoring of vital camera and lens functions is possible from a tablet, smartphone, or computer. And while streaming, the camera continues to function as a high quality, full HD camcorder giving you a pristine copy of the service with or without graphic overlay.

The JVC GY-HM200HW produces a graphic overlay on recorded or streamed video output with graphic icons for several holy events. The overlay is produced for both the streamed and recorded video simultaneously. No external character generator is necessary.

Full Screen Overlays and Slide Shows - New feature

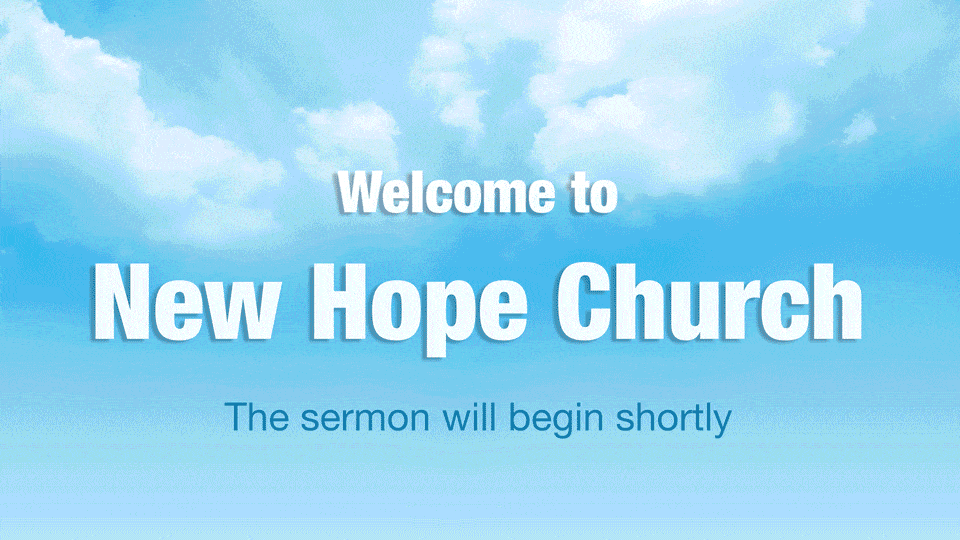

Add up to 50 full screen custom graphics (PNG or JPG format) from an SD card and store them in the camera for live streaming or recording in the HD mode. Graphics may be advanced manually or presented as a looping slideshow with timing 1-99 seconds per slide. This new feature allows users to create opening and closing graphics, scripture passages, hymn lyrics and much more. Graphics may be produced with PowerPoint or any photo editing software and saved as a series of image files. PNG graphics provide the most flexibility for creating overlays because they allow you to create transparent backgrounds. Full-screen graphics are saved at 960x540 and upscaled to 1920x1080. Stored graphics may be shown independently or concurrently with the lower third graphics generated in the camera.

Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor

The JVC GY-HM200HW was built to deliver stunning, true to life video. The ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.

Dual SDHC/SDXC Card Slots

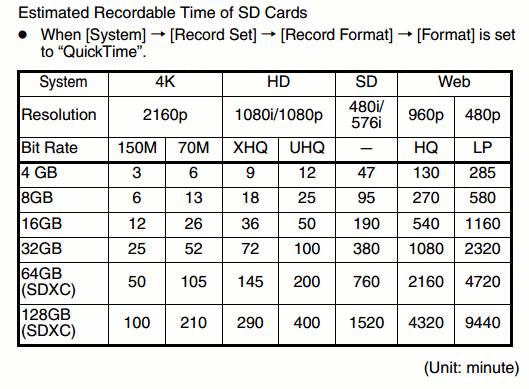

The JVC GY-HM200HW creates hours of pristine recordings to affordable non-proprietary SDHC/SDXC media in a variety of image formats including 4K Ultra HD, Full HD with 4:2:2 sampling, and SD and web friendly proxy formats. Dual SDHC/SDXC card slots make it truly versatile, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot the event continuously over multiple cards—when one card is full, the camcorder switches automatically and seamlessly to the other card—perfect for longer ceremonies!

Other features:

• Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
• High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
• 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed Class 3) card
• 4K Ultra HD recording (70 Mbps, 24/30p) to SDXC/SDHC(Class 10) card
• 4:2:2 Full HD (24-60p) recording at 50Mbps
• Live 4K UHD output via HDMI connector
• 2 position ND filter (1/4, 1/16)
• HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
• HD-SDI and HDMI outputs can feed and trigger external recorder
• Built-in stereo microphone
• Dual memory slots enable dual, backup and continuous recording
• Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine*
• 3.5-inch color LCD display (920K pixel) with smart focus assist function
• 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
• Histogram Display
• Wired remote control supported
• 9 user button assignable functions
• Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter

  External microphone not included

* Optional Wi-Fi adapter or other suitable network connection required. Tablet or other browser-equipped device required. Title overlays are not available in 4K Ultra HD recording mode.

JVC GY-HM200HW - House of Worship Streaming Camcorder Specifications

GENERALSPECIFICATIONS
Power	DC12V (AC adapter), DC 7.4V (Battery)
PowerConsumption	Approx. Approx. 7.9W （with VF in 4K REC mode, default setting）
Weight	Approx.3.53 lb (1.6kg) (including battery)
Dimensions	149(W)x 191(H) x 307(D)mm
Operationtemperature	0℃to 40℃ (32°Fto 104°F)
Storagetemperature	-20℃to 50℃ ( 14°F to 122°F)
Operatinghumidity	30%to 80%
Storagehumidity	under85%
CAMERA
ImageSensor	1/2.3-inchBack Side Illuminated CMOS Total12.4M pixels
Synchronizing	Internalsynchronization
Stabilizer	Opticalimage stabilizer
Shutterspeed	1/6～1/10000
Lens	F1.2(wide) to F3.5 (tele) f=4.67mmto 56.04mm 35mmequivalent: 29.6mm to 355mm
Filterdiameter	62mm
Gain	0,3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC
NDfilter	none, 1/4, 1/16
LCDdisplay	3.5-inch 920 k pixels, 16:9
Viewfinder	0.24-inch1.56 M pixel, 16:9
VIDEO/AUDIORECORDING
Recordingmedia	2xSDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4)
Videorecording	Videocodec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD)
	Fileformat : MOV(H.264), MTS(AVCHD)
4K(H.264)	NTSCsetting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps) PAL setting: 3840 x 2160/25p (70,150Mbps) PALsetting: 3840 x 2160/25p
HD(H.264)	NTSCsetting: YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps) UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps) PALsetting: XHQ mode:1920 x 1080/50p(50Mbps) XHQmode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps),1280x720/50p(35Mbps)
AVCHD	NTSCsetting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQmode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LPmode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode) PALsetting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQmode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LPmode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode)
SD(MOV/AVCHD)	NTSCsetting: 720 x 480/59.94i (8 Mpbs)
Proxy(H.264)	NTSCsetting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LPmode(1.2Mbps):480 x 270/29.97p, 23.98p PALsetting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x270/25p
Audiorecording	LPCM2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow2ch(Proxy)
LIVE VIDEO STREAMING
Protocol	RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI
Bitrate	0.2 - 12 Mbps
Resolution	1920x1080, 1280x720, 720x480, 480x270
INTERFACE
Videooutput	AVoutput (φ3.5mm mini jack x1) SDIoutput (BNC x1) HDMIoutput x1
Audioinput	XLRx2 (MIC,+48V/LINE), φ3.5mm mini jack x1
Audiooutput	AVoutput (φ3.5mm mini jack x1)
Headphone	φ3.5mmmini jack x1
Remote	φ2.5mmmini jack x1
USB	HOST x1(Network Connection) , DEVICEx1(Mass storage) Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters
Network Function	Live Video Streaming, FTP, Remote Control

• JVC GY-HM200HW House of Worship Streaming Camcorder
• Handle Unit
• SSL-JVC50 7.4V IDX Lithium-Ion Battery for JVC Camcorders
• AC Adapter
• Limited 1-Year Warranty (Upgrade to 3-year warranty with registration)
