Use this camera to stream directly to Facebook Live (no computer needed). As a great benefit, you can add titles, graphics, lyrics, and more, by connecting any tablet or laptop!
Fully equipped for any shooting scenario, the GY-HM250 is JVC's next generation camcorder! Whether you're shooting 4K Ultra HD, 4:2:2 Full HD, or streaming to the web, this camera does it all. Its integrated 12x optical zoom lens and 4K CMOS sensor, deliver stunning 4K Ultra HD recordings directly to SDHC/SDXC memory cards. And the camera is totally professional, complete with dual XLR audio inputs, HD-SDI (3G) and HDMI outputs, and is equipped with JVC's dual codec Advanced Streaming Technology. Connect to the internet via optional Wi-Fi or 4G LTE modem and stream HD instantly to USTREAM or any other destination while recording to the SDHC memory card. No other camcorder comes close to delivering so much in a complete, well equipped package.
NEW FEATURE: 120fps slow motion HD recording (available with free firmware upgrade.)
Graphic & Titling Solutions for a Single Camera Operator

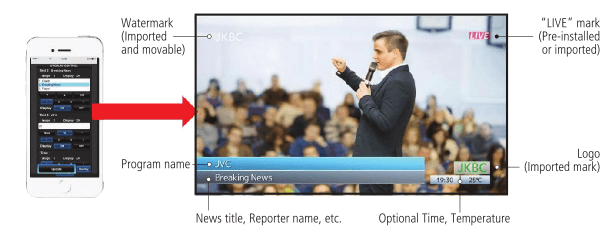

Designed for enhanced single-camera production, the GY-HM250U offers lower-third and full-screen titling solutions for recorded or streamed HD video output without an external CG or production switcher. Lower-third graphic overlays are generated and controlled using a browser-equipped device such as a tablet or smartphone. JVC's software utility lets customers upload logos or icons to be displayed in the lower-third of the recorded video. The camera also comes with several pre-installed color schemes and the ability to add your own text bar designs also exists. The new GY-HM250 is perfect for streaming broadcast news, weddings, school, family and church events, or literally any occasion you want to share live!
Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor
-
Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions. -
4K Ultra HD Recording at 150Mbps and Live Output-
Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera. The GY-HM250 also downconverts UHD signals to standard HD for output through the built-in SDI or HDMI connectors. -
4:2:2 Full HD recording at 50Mbps-
The GY-HM200 records 4:2:2 HD signals up to 60p at 50Mbps making it an ideal camera for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats. -
Dual SDHC/SDXC Card Slots | Dual SDHC/SDXC card slots make the GY-HM250 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards. |
-
Web Friendly (Proxy) file formats- Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to post. The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Transporting video to the web or back to the studio has never been faster.
-
Advanced IP Network Communication and Streaming-
The GY-HM250 features JVC's latest IP communications engine giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or lower resolutions, depending on available bandwidth. JVC's Advanced Streaming Technology (AST) includes Zixi powered Forward Error Correction with ARQ, delivering high quality streams even under challenging conditions. RTMP protocol makes it easier than ever to deliver your live streams to content delivery networks such as USTREAM and YouTube. And with Version 2.0 (available September 2015) streaming is more reliable than ever with Adaptive Bitrate Control. Just press one button and you're streaming to the world!
Main features:
- Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
- High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
- Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
- 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
- 4K Ultra HD recording (70 Mbps, 24/30p) to SDXC/SDHC(Class 10) card
- 4:2:2 Full HD (24-60p) recording at 50Mbps
- 120fps HD recording (available December 2015)
- Live 4K UHD output via HDMI connector
- 2 position ND filter (1/4, 1/16)
- HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
- HD-SDI and HDMI outputs can feed and trigger external recorder
- 2-channel XLR audio inputs with phantom power
- Built-in stereo microphone
- Dual SDHC/SDXC slots enable dual, backup and continuous recording
- Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
- IP Network Remote Control, Remote Viewing, Metadata editing, FTP clips*
- 3.5-inch color LCD display (920K pixel) with smart focus assist function
- 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
- Histogram Display
- Wired remote control supported
- 9 user button assignable functions
- Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
External microphone not included
*Requires appropriate network connection and adapter
| GY-LS300 | GY-HM250 | GY-HM180 |
Image sensor | Super 35 | 1/2.3-inch | 1/2.3-inch |
Lens included |
|
|
|
4K Ultra HD Recording (24p/25p/30p) |
|
|
|
4:2:2 50Mpbs HD (24p-60p), |
|
|
|
SDHC/SDXC |
|
|
|
Dual codec recording |
|
|
|
Proxy recording |
|
|
|
Digital output | HD-SDI, HDMI | HD-SDI, HDMI | HD-SDI, HDMI |
XLR Audio input |
|
|
|
ND Filters | 3 | 2 | 2 |
IP connectivity |
|
|
|
Live Streaming |
|
|
|
Handle unit |
|
|
|
Shotgun microphone |
| |
|
Battery | SSL-JVC50 (7.4V) | SSL-JVC50 (7.4V) | BN-VF823 (7.2V) |
|
| Cinema 4K/2K |
| | |
| JVC Log (800% dynamic range) |
| | |
| Prime Zoom |
| | |
| Histogram |
|
|
|
| Spot meter |
| | |
| Color Matrix/Black Paint adustment |
| | |
| 4K Recording at 70Mbps |
|
|
|
GENERAL SPECIFICATIONS |
|---|
Power | DC 12V (AC adapter), DC 7.4V (Battery) |
Power Consumption | Approx. Approx. 7.9W （with VF in 4K REC mode, default setting） |
Weight | Approx. 3.53 lb (1.6kg) (including battery) |
Dimensions | 149(W) x 191(H) x 307(D)mm |
Operation temperature | 0℃ to 40℃ (32°F to 104°F) |
Storage temperature | -20℃ to 50℃ ( 14°F to 122°F) |
Operating humidity | 30% to 80% |
Storage humidity | under 85% |
CAMERA |
Image Sensor | 1/2.3-inch Back Side Illuminated CMOS Total 12.4M pixels |
Synchronizing | Internal synchronization |
Stabilizer | Optical image stabilizer |
Shutter speed | 1/6～ 1/10000 |
Lens | F1.2 (wide) to F3.5 (tele) f=4.67mm to 56.04mm 35mm equivalent: 29.6mm to 355mm |
Filter diameter | 62mm |
Gain | 0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC |
ND filter | none , 1/4, 1/16 |
LCD display | 3.5-inch 920 k pixels, 16:9 |
Viewfinder | 0.24-inch 1.56 M pixel, 16:9 |
VIDEO/AUDIO RECORDING |
Recording media | 2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4) |
Video recording | Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD) |
| File format : MOV(H.264), MTS(AVCHD) |
4K(H.264) | NTSC setting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps)
PAL setting: 3840 x 2160/25p (70,150Mbps) PAL setting: 3840 x 2160/25p |
HD(H.264) | NTSC setting: YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps) UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps) PAL setting: XHQ mode:1920 x 1080/50p(50Mbps) XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps) |
AVCHD | NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LP mode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode) PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LP mode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode) |
SD(MOV/AVCHD) | NTSC setting: 720 x 480/59.94i (8 Mpbs) |
Proxy(H.264) | NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p |
|
Audio recording | LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy) |
LIVE VIDEO STREAMING |
Protocol | RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI |
Bitrate | 0.2 - 12 Mbps |
Resolution | 1920x1080, 1280x720, 720x480, 480x270 |
INTERFACE |
|---|
Video output | AV output (φ3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1 |
Audio input | XLR x2 (MIC,+48V/LINE), φ3.5mm mini jack x1 |
Audio output | AV output (φ3.5mm mini jack x1) |
Headphone | φ3.5mm mini jack x1 |
Remote | φ2.5mm mini jack x1 |
USB | HOST x1(Network Connection) , DEVICEx1(Mass storage)
Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters |
Network Function | Live Video Streaming, FTP, Remote Control |
INCLUDED ACCESSORIES |
Handle unit, Battery(SSL-JVC50) x1, AC Adapter x1 |
- JVC GY-HM200U - 4kCam Handheld Camcorder with 12x Lens
- SSL-JVC50 7.4V IDX Lithium-Ion Battery
- Handle Unit
- AC Adapter
- Limited 1-Year Parts and Labor Warranty - Upgraded to 3-Year Parts and Labor when purchased from JVC Authorized Reseller (this site is operated by Virtualsets.com, Inc, JVC Authorized Reseller #03516) and registered within 30 days of purchase.
- JVC Professional Video Authorized Verification Link
